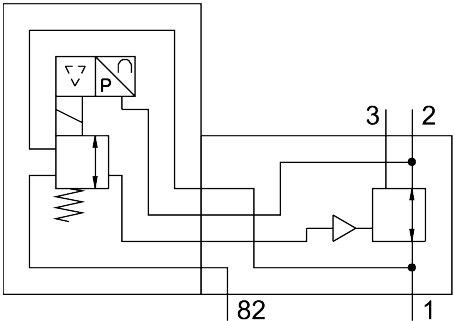

Reference imageConfirm configuration by manufacturer part number.
Festo
1709129
Electric pressure regulator PREL-90-HP3-V1-V-20CFX-S1-2
The Festo 1709129 is an electrical Size 90 structural design Series L electrically adjustable pressure regulator with a nominal width DN of 24 and vertical mounting position. It features constant output pressure, primary pressure compensation, and secondary exhausting, operating across 0 MPa to 5 MPa (0 bar to 50 bar) with a pressure regulation range of 0.5 bar to 20 bar. Requiring a nominal operating voltage of 24 V DC, the unit incorporates 0 - 10 V analog input and output signal ranges for voltage type setpoint and actual values. Operating with compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases, this component holds a Special Equipment Type Test Certification, CRC 2 moderate corrosion stress rating, and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1709129
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1709129.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 90
- Nominal width DN
- 24
- Series
- L
- Mounting position
- Vertical
- Actuation type
- Electrical
- Structural design
- Electrically adjustable pressure regulator
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting
- Operating pressure
- 0 MPa...5 MPa | 0 bar...50 bar
- Pressure regulation range
- 0.5 bar...20 bar
- Nominal operating voltage DC
- 24 V
- Analog output signal range
- 0 - 10 V
- Analog input signal range
- 0 - 10 V
- Setpoint/actual values
- Voltage type 0 - 10 V
- Certication
- Special Equipment Type Test Certication
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 5 °C...50 °C
- Ambient temperature
- 5 °C...50 °C
- Product weight
- 6100 g
- Electrical connection IN
- Plug, M12, 5-pin, A-coded
- Electrical connection OUT
- Plug, M12, 5-pin, A-coded
- Type of mounting
- Alternatively: | On service unit | With accessories
- Pneumatic connection 1
- G1
- Pneumatic connection 11
- G1/4
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1709129. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
