Festo
1709130

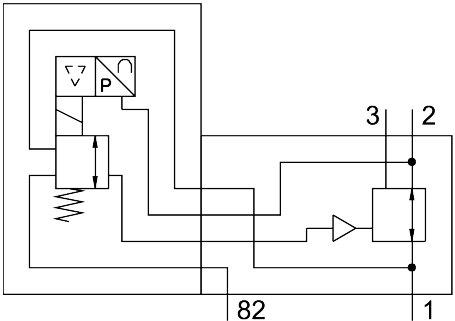

Electric pressure regulator PREL-90-HP3-A4-A-20CFX-S1-2
The Festo part number 1709130 is an electrically adjustable pressure regulator of series L, featuring a size of 90 and a nominal width DN of 24 for vertical mounting positions. Designed with a constant output pressure controller function, primary pressure compensation, and secondary exhausting, this component operates at 24 V DC with an operating pressure range of 0 MPa to 5 MPa (0 bar to 50 bar) and a regulation range of 0.5 bar to 20 bar. It utilizes 4–20 mA analog input and output signal ranges for setpoint and actual values, handles compressed air per ISO 8573-1:2010 [7:4:4] or inert gases, and carries Special Equipment Type Test Certification alongside a CRC 2 moderate corrosion resistance rating. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1709130
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1709130.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 90
- Nominal width DN
- 24
- Series
- L
- Mounting position
- Vertical
- Actuation type
- Electrical
- Structural design
- Electrically adjustable pressure regulator
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting
- Operating pressure
- 0 MPa...5 MPa | 0 bar...50 bar
- Pressure regulation range
- 0.5 bar...20 bar
- Nominal operating voltage DC
- 24 V
- Analog output signal range
- 4 - 20 mA
- Analog input signal range
- 4 - 20 mA
- Setpoint/actual values
- Current type 4–20 mA
- Certication
- Special Equipment Type Test Certication
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 5 °C...50 °C
- Ambient temperature
- 5 °C...50 °C
- Product weight
- 6100 g
- Electrical connection IN
- Plug, M12, 5-pin, A-coded
- Electrical connection OUT
- Plug, M12, 5-pin, A-coded
- Type of mounting
- Alternatively: | On service unit | With accessories
- Pneumatic connection 1
- G1
- Pneumatic connection 11
- G1/4
