Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

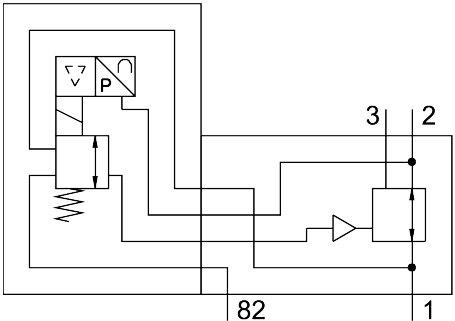

Reference imageConfirm configuration by manufacturer part number.
Festo
1709131
Electric pressure regulator PREL-90-HP3-V1-A-40CFX-S2-3
The Festo 1709131 is an electrically adjustable pressure regulator of series L in size 90 with a nominal width DN of 24, designed for a vertical mounting position and 24 V DC nominal operating voltage. It provides constant output pressure with primary pressure compensation and secondary exhausting across an operating pressure range of 0 MPa to 5 MPa (0 bar to 50 bar) and a pressure regulation range of 0.6 bar to 40 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4] or inert gases as the operating medium. Featuring a 0 - 10 V analog input signal range, a 4 - 20 mA analog output signal range, voltage type setpoint and actual values, and Special Equipment Type Test Certification, this industrial component exhibits a corrosion resistance class of 2 and VDMA24364 Zone III LABS conformity for media temperatures between 5 °C and 50 °C and storage temperatures from -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1709131
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1709131.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 90
- Nominal width DN
- 24
- Series
- L
- Mounting position
- Vertical
- Actuation type
- Electrical
- Structural design
- Electrically adjustable pressure regulator
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting
- Operating pressure
- 0 MPa...5 MPa | 0 bar...50 bar
- Pressure regulation range
- 0.6 bar...40 bar
- Nominal operating voltage DC
- 24 V
- Analog output signal range
- 4 - 20 mA
- Analog input signal range
- 0 - 10 V
- Setpoint/actual values
- Voltage type 0 - 10 V
- Certication
- Special Equipment Type Test Certication
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 5 °C...50 °C
- Ambient temperature
- 5 °C...50 °C
- Product weight
- 6100 g
- Electrical connection IN
- Plug, M12, 5-pin, A-coded
- Electrical connection OUT
- Plug, M12, 5-pin, A-coded
- Type of mounting
- Alternatively: | On service unit | With accessories
- Pneumatic connection 1
- G1
- Pneumatic connection 11
- G1/4
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1709131. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
