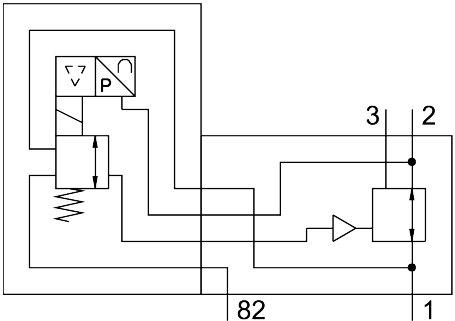

Reference imageConfirm configuration by manufacturer part number.
Festo
1709136
Electric pressure regulator PREL-90-HP3-A4-A-20CFX-S1-4
The Festo 1709136 is an electrical Size 90 industrial component featuring a structural design as an electrically adjustable pressure regulator with a nominal width DN of 24 and L series designation. Operating within a pressure range of 0 bar to 50 bar and a regulation range of 0.5 bar to 20 bar, this unit delivers constant output pressure utilizing primary pressure compensation and secondary exhausting for compressed air per ISO 8573-1:2010 [7:4:4] or inert gases. It functions on a nominal operating voltage of 24 V DC with 4 - 20 mA analog input and output signal ranges for setpoint and actual values, supported by a vertical mounting position, moderate corrosion stress resistance class 2, and Special Equipment Type Test Certification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1709136
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1709136.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 90
- Nominal width DN
- 24
- Series
- L
- Mounting position
- Vertical
- Actuation type
- Electrical
- Structural design
- Electrically adjustable pressure regulator
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting
- Operating pressure
- 0 MPa...5 MPa | 0 bar...50 bar
- Pressure regulation range
- 0.5 bar...20 bar
- Nominal operating voltage DC
- 24 V
- Analog output signal range
- 4 - 20 mA
- Analog input signal range
- 4 - 20 mA
- Setpoint/actual values
- Current type 4–20 mA
- Certication
- Special Equipment Type Test Certication
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 5 °C...50 °C
- Ambient temperature
- 5 °C...50 °C
- Product weight
- 6100 g
- Electrical connection IN
- Plug, M12, 5-pin, A-coded
- Electrical connection OUT
- Plug, M12, 5-pin, A-coded
- Type of mounting
- Alternatively: | On service unit | With accessories
- Pneumatic connection 1
- G1
- Pneumatic connection 11
- G1/4
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1709136. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
