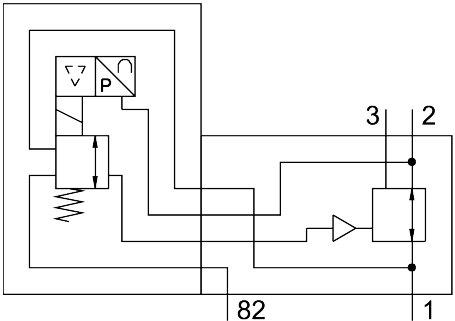

Reference imageConfirm configuration by manufacturer part number.
Festo
1709211
Electric pressure regulator PREL-186-HP3-V1-A-40CFX-1
The Festo part number 1709211 is a size 186 electrically adjustable pressure regulator from the L series featuring an electrical actuation type and a nominal width DN of 45. This component provides constant output pressure with primary pressure compensation and secondary exhausting, supporting an operating pressure range of 0 MPa to 5 MPa (0 bar to 50 bar) and a pressure regulation range of 0.4 bar to 40 bar. It operates on a nominal DC voltage of 24 V, utilizes a 4 - 20 mA analog output signal range along with a 0 - 10 V analog input signal range, and features a maximum pressure hysteresis of 0.806 bar in a vertical mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1709211
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1709211.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 186
- Nominal width DN
- 45
- Series
- L
- Mounting position
- Vertical
- Actuation type
- Electrical
- Structural design
- Electrically adjustable pressure regulator
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting
- Operating pressure
- 0 MPa...5 MPa | 0 bar...50 bar
- Pressure regulation range
- 0.4 bar...40 bar
- Max. pressure hysteresis
- 0.806 bar
- Nominal operating voltage DC
- 24 V
- Analog output signal range
- 4 - 20 mA
- Analog input signal range
- 0 - 10 V
- Setpoint/actual values
- Voltage type 0 - 10 V
- Certication
- Special Equipment Type Test Certication
- CE marking (see declaration of conformity)
- as per EU pressure equipment directive
- UKCA marking (see declaration of conformity)
- according to UK regulations for pressure equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 5 °C...50 °C
- Ambient temperature
- 5 °C...50 °C
- Electrical connection IN
- Plug, M12, 5-pin, A-coded
- Electrical connection OUT
- Plug, M12, 5-pin, A-coded
- Type of mounting
- Alternatively: | On service unit | With accessories
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1709211. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
