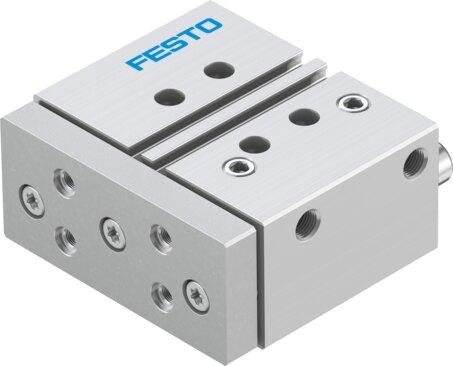

Reference imageConfirm configuration by manufacturer part number.
Festo
170923
Guided drive DFM-25-25-P-A-KF
The Festo 170923 is a double-acting industrial drive unit featuring a 25 mm piston diameter, a 25 mm stroke, and a yoke operating mode with an xs distance of 50 mm from the payload center of gravity to the yoke plate. Designed with a recirculating ball bearing guide and elastic cushioning rings or pads at both ends, this component operates within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar) and delivers a maximum force Fy of 863 N at speeds up to 0.8 m/s. It accommodates any mounting position, provides position sensing via a proximity switch, achieves ISO 14644-1 Cleanroom Class 6 suitability, and functions with compressed air under ISO 8573-1:2010 [7:4:4] standards within an ambient temperature range of -5 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170923
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170923.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 25 mm
- Piston diameter
- 25 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Impact energy in the end positions
- 0.3 Nm
- Max. force Fy
- 863 N
- Max. force Fy static
- 1060 N
- Max. force Fz
- 863 N
- Max. force Fz static
- 1060 N
- Max. torque Mx
- 29.35 Nm
- Max. static moment Mx
- 36.04 Nm
- Max. torque My
- 12.52 Nm
- Max. static moment My
- 15.37 Nm
- Max. torque Mz
- 12.52 Nm
- Max. static moment Mz
- 15.37 Nm
- Max. permissible torque load Mx as a function of the stroke
- 5.77 Nm
- Max. payload as a function of the stroke at dened distance xs
- 105 N
