Festo
170942

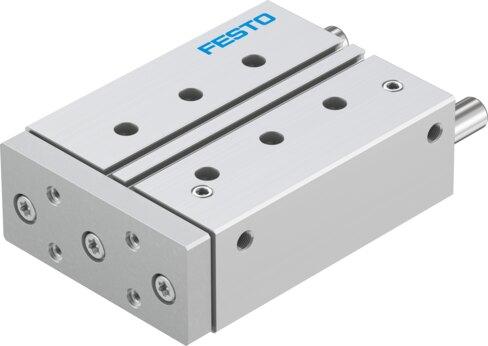

Guided drive DFM-40-100-P-A-KF
The Festo 170942 is a double-acting industrial drive unit featuring a 40 mm piston diameter, a 100 mm stroke, and a yoke drive operating mode with a 50 mm distance from the payload center of gravity to the yoke plate. Equipped with a recirculating ball bearing guide, elastic cushioning rings at both ends, and position sensing via proximity switch, this component operates at pressures ranging from 0.15 MPa to 1 MPa (1.5 bar to 10 bar) and supports a maximum speed of 0.8 m/s and a maximum force Fy of 1130 N. It operates with compressed air per ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -5 °C to 60 °C, achieving ISO Class 6 cleanroom suitability and VDMA24364-B1/B2-L LABS conformity with a CRC rating of 0. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170942
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170942.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 100 mm
- Piston diameter
- 40 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Impact energy in the end positions
- 0.7 Nm
- Max. force Fy
- 1130 N
- Max. force Fy static
- 1260 N
- Max. force Fz
- 1130 N
- Max. force Fz static
- 1260 N
- Max. torque Mx
- 49.74 Nm
- Max. static moment Mx
- 55.44 Nm
- Max. torque My
- 28.83 Nm
- Max. static moment My
- 32.13 Nm
- Max. torque Mz
- 28.83 Nm
- Max. static moment Mz
- 32.13 Nm
- Max. permissible torque load Mx as a function of the stroke
- 7.74 Nm
- Max. payload as a function of the stroke at dened distance xs
- 138 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170942. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
