Festo
170944

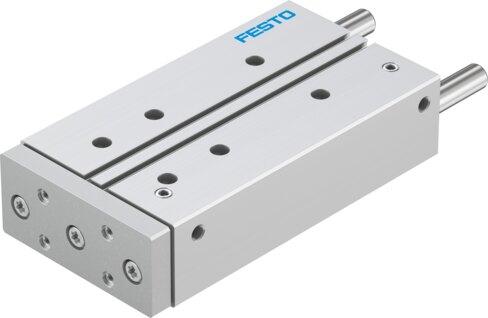

Guided drive DFM-40-160-P-A-KF
The Festo part number 170944 is a double-acting industrial drive unit featuring a 40 mm piston diameter, a 160 mm stroke, and a yoke drive operating mode with a recirculating ball bearing guide. It operates at pressures from 1.5 bar to 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4], achieves a maximum speed of 0.8 m/s, and incorporates elastic cushioning rings at both ends with an end-position impact energy of 0.7 Nm. The component supports position sensing via proximity switch, accommodates any mounting position within an ambient temperature range of -5 °C to 60 °C, and withstands a maximum force Fy of 1130 N with a payload center of gravity distance to the yoke plate xs of 50 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170944
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170944.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 160 mm
- Piston diameter
- 40 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Impact energy in the end positions
- 0.7 Nm
- Max. force Fy
- 1130 N
- Max. force Fy static
- 1260 N
- Max. force Fz
- 1130 N
- Max. force Fz static
- 1260 N
- Max. torque Mx
- 49.74 Nm
- Max. static moment Mx
- 55.44 Nm
- Max. torque My
- 40.13 Nm
- Max. static moment My
- 44.73 Nm
- Max. torque Mz
- 40.13 Nm
- Max. static moment Mz
- 44.73 Nm
- Max. permissible torque load Mx as a function of the stroke
- 7.49 Nm
- Max. payload as a function of the stroke at dened distance xs
- 143 N
