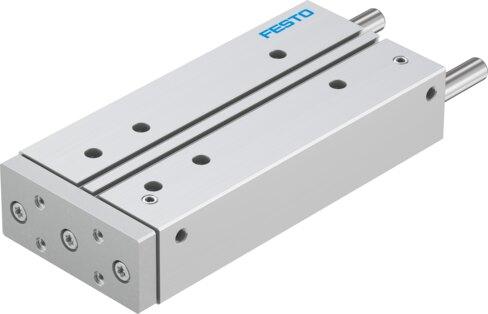

Name: Festo 170945 Guided drive DFM-40-200-P-A-KF
Brand: Festo

Guided drive DFM-40-200-P-A-KF

The Festo 170945 is a double-acting industrial drive unit featuring a 40 mm piston diameter, a 200 mm stroke, and a yoke drive operating mode with a recirculating ball bearing guide. It operates within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar), achieving a maximum speed of 0.8 m/s and a maximum force Fy of 1130 N with elastic cushioning rings or pads at both ends. Designed for any mounting position, this component includes position sensing via proximity switch and is suitable for environments requiring ISO 14644-1 Class 6 cleanroom compatibility. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 170945
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 170945.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Distance of centre of gravity of payload to yoke plate xs: 50 mm
Stroke: 200 mm
Piston diameter: 40 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Guide
Position sensing: Via proximity switch
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Max. speed: 0.8 m/s
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -5 °C...60 °C
Impact energy in the end positions: 0.7 Nm
Max. force Fy: 1130 N
Max. force Fy static: 1260 N
Max. force Fz: 1130 N
Max. force Fz static: 1260 N
Max. torque Mx: 49.74 Nm
Max. static moment Mx: 55.44 Nm
Max. torque My: 40.13 Nm
Max. static moment My: 44.73 Nm
Max. torque Mz: 40.13 Nm
Max. static moment Mz: 44.73 Nm
Max. permissible torque load Mx as a function of the stroke: 6.5 Nm
Max. payload as a function of the stroke at dened distance xs: 127 N
