Festo
170954

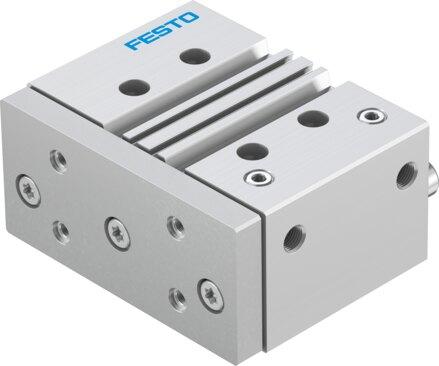

Guided drive DFM-63-50-P-A-KF
The Festo part number 170954 is a double-acting industrial drive unit featuring a yoke structural design, a 63 mm piston diameter, and a 50 mm stroke. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] across an operating pressure range of 1 bar to 10 bar, utilizing elastic cushioning rings or pads at both ends with a 1.3 Nm impact energy in the end positions. Equipped with a recirculating ball bearing guide and position sensing via proximity switch, this component supports a maximum speed of 0.6 m/s, a maximum force Fy of 1487 N, and a 50 mm distance of the center of gravity of the payload to the yoke plate xs. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170954
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170954.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 50 mm
- Piston diameter
- 63 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Max. speed
- 0.6 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Impact energy in the end positions
- 1.3 Nm
- Max. force Fy
- 1487 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1487 N
- Max. force Fz static
- 1600 N
- Max. torque Mx
- 92.97 Nm
- Max. static moment Mx
- 100 Nm
- Max. torque My
- 31.98 Nm
- Max. static moment My
- 34.4 Nm
- Max. torque Mz
- 31.98 Nm
- Max. static moment Mz
- 34.4 Nm
- Max. permissible torque load Mx as a function of the stroke
- 17.62 Nm
- Max. payload as a function of the stroke at dened distance xs
- 202 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170954. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
