Name: Festo 170959 Guided drive DFM-63-200-P-A-KF
Brand: Festo

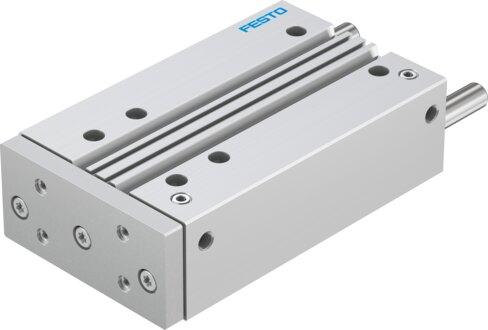

Guided drive DFM-63-200-P-A-KF

The Festo 170959 is a double-acting industrial drive unit featuring a yoke structural design, a 63 mm piston diameter, and a 200 mm stroke. It operates with compressed air within a pressure range of 1 bar to 10 bar, incorporating elastic cushioning rings at both ends and a recirculating ball bearing guide for a maximum speed of 0.6 m/s. This component achieves a maximum force Fy of 1,487 N, allows position sensing via proximity switch, and maintains ISO 14644-1 Class 6 cleanroom suitability. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 170959
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 170959.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Distance of centre of gravity of payload to yoke plate xs: 50 mm
Stroke: 200 mm
Piston diameter: 63 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Guide
Position sensing: Via proximity switch
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Max. speed: 0.6 m/s
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -5 °C...60 °C
Impact energy in the end positions: 1.3 Nm
Max. force Fy: 1487 N
Max. force Fy static: 1600 N
Max. force Fz: 1487 N
Max. force Fz static: 1600 N
Max. torque Mx: 92.97 Nm
Max. static moment Mx: 100 Nm
Max. torque My: 62.46 Nm
Max. static moment My: 67.2 Nm
Max. torque Mz: 62.46 Nm
Max. static moment Mz: 67.2 Nm
Max. permissible torque load Mx as a function of the stroke: 13.68 Nm
Max. payload as a function of the stroke at dened distance xs: 189 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 170959. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
