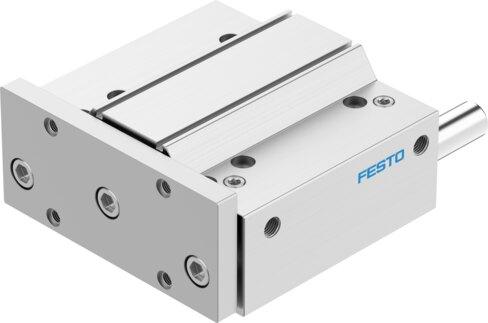

Name: Festo 170971 Guided drive DFM-100-125-P-A-KF
Brand: Festo

Guided drive DFM-100-125-P-A-KF

Engineered with a 100 mm piston diameter and a 125 mm stroke, this Festo industrial component operates in a double-acting yoke drive mode with elastic cushioning rings or pads at both ends. The unit features a recirculating ball bearing guide, supports any mounting position, and accommodates an operating pressure range of 0.05 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It achieves a maximum speed of 0.4 m/s, withstands an impact energy of 1 Nm in the end positions, and delivers a maximum force Fy of 3043 N while meeting ISO 14644-1 Cleanroom Class 6 suitability. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 170971
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 170971.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Distance of centre of gravity of payload to yoke plate xs: 125 mm
Stroke: 125 mm
Piston diameter: 100 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Guide
Position sensing: Via proximity switch
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Max. speed: 0.4 m/s
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -5 °C...60 °C
Impact energy in the end positions: 1 Nm
Max. force Fy: 3043 N
Max. force Fy static: 5400 N
Max. force Fz: 3043 N
Max. force Fz static: 5400 N
Max. torque Mx: 286.02 Nm
Max. static moment Mx: 507.6 Nm
Max. torque My: 155.16 Nm
Max. static moment My: 275.4 Nm
Max. torque Mz: 155.16 Nm
Max. static moment Mz: 275.4 Nm
Max. permissible torque load Mx as a function of the stroke: 53.98 Nm
Max. payload as a function of the stroke at dened distance xs: 463 N
