Name: Festo 170973 Guided drive DFM-100-200-P-A-KF
Brand: Festo

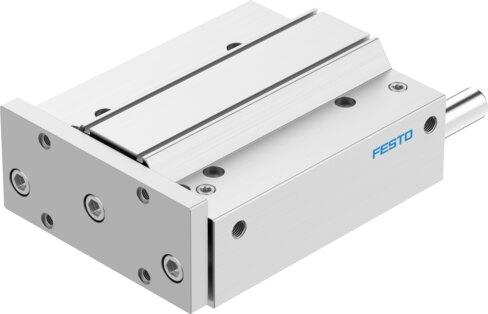

Guided drive DFM-100-200-P-A-KF

The Festo part number 170973 is a double-acting industrial drive unit featuring a yoke structural design, a 100 mm piston diameter, and a 200 mm stroke. It operates with compressed air within a pressure range of 0.05 MPa to 1 MPa and achieves a maximum speed of 0.4 m/s, utilizing a recirculating ball bearing guide alongside elastic cushioning rings at both ends. This component accommodates any mounting position, supports position sensing via proximity switch, and maintains a payload centre of gravity distance xs to the yoke plate of 125 mm with a maximum force Fy of 3043 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 170973
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 170973.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Distance of centre of gravity of payload to yoke plate xs: 125 mm
Stroke: 200 mm
Piston diameter: 100 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Guide
Position sensing: Via proximity switch
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Max. speed: 0.4 m/s
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -5 °C...60 °C
Impact energy in the end positions: 1 Nm
Max. force Fy: 3043 N
Max. force Fy static: 5400 N
Max. force Fz: 3043 N
Max. force Fz static: 5400 N
Max. torque Mx: 286.02 Nm
Max. static moment Mx: 507.6 Nm
Max. torque My: 155.16 Nm
Max. static moment My: 275.4 Nm
Max. torque Mz: 155.16 Nm
Max. static moment Mz: 275.4 Nm
Max. permissible torque load Mx as a function of the stroke: 40.82 Nm
