Festo
171056

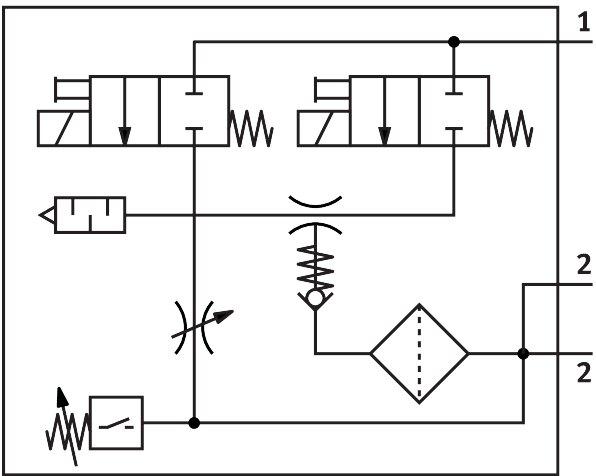

Vacuum generator VADMI-70-LS-N
The Festo 171056 industrial component features a 0.7 mm nominal width Laval nozzle, a 15 mm width dimension, and a closed muffier construction type with any mounting position. This high vacuum ejector incorporates a 40 µm grade of filtration, a non-detenting manual override, and multiple integrated functions including an electric ejector pulse valve, flow control valve, electric on-o valve, filter, electric air-saving function, check valve, and vacuum switch. Pressure measurement is performed via a piezoresistive measuring principle for relative pressure, complemented by an LED display, optical switching status indication, potentiometer setting options, N.O. contact switching element function, threshold value comparator switching function, closed valve function, reverse polarity protection for all electrical connections, and adjustable hysteresis and threshold value setting ranges. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 171056
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 171056.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.7 mm
- Width dimension
- 15 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Filter | Electric air-saving function | Check valve | Vacuum switch
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- N.O. contact
- Switching function
- Threshold value comparator
- Valve function
- Closed
- Reverse polarity protection
- for all electrical connections
- Display type
- LED
- Setting range hysteresis
- -60 kPa...-10 kPa | -0.6 bar...-0.1 bar
- Hysteresis setting range
- -8.7 psi...-1.45 psi
- Setting options
- Potentiometer
- Switching status indication
- Optical
- Setting range threshold value
- -90 kPa...-20 kPa | -0.9 bar...-0.2 bar
- Threshold value setting range
- -13.05 psi...-2.9 psi
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Max. vacuum
- 85 %
- Nominal operating pressure
- 0.6 MPa
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 171056. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
