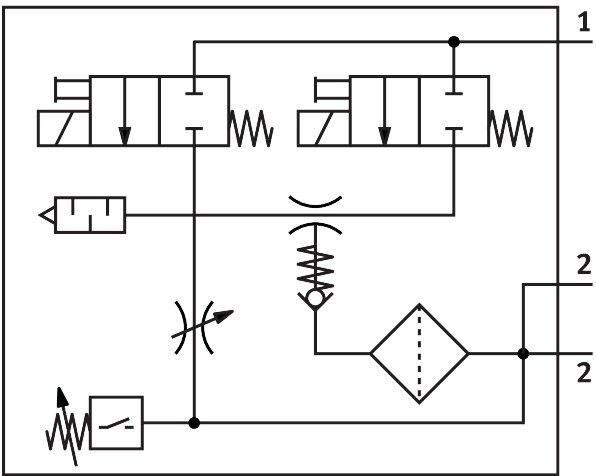

Reference imageConfirm configuration by manufacturer part number.
Festo
171058
Vacuum generator VADMI-95-LS-N
The Festo part number 171058 is an industrial component featuring an 18 mm width and a 0.95 mm nominal width Laval nozzle with a closed muffler construction type and any mounting position. This high vacuum ejector incorporates a 40 µm grade of filtration, a non-detenting manual override, and integrated functions including an electric ejector pulse valve, flow control valve, electric on-off valve, filter, electric air-saving function, check valve, and vacuum switch. It utilizes a piezoresistive measuring principle for relative pressure with a threshold value comparator switching function, an N.O. contact switching element function, an LED display, optical switching status indication, potentiometer setting options, and reverse polarity protection for all electrical connections. The threshold value setting range spans from -90 kPa to -20 kPa (-0.9 bar to -0.2 bar), while the hysteresis setting range covers -60 kPa to -10 kPa (-0.6 bar to -0.1 bar) or -8.7 psi to -1.45 psi. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 171058
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 171058.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.95 mm
- Width dimension
- 18 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Filter | Electric air-saving function | Check valve | Vacuum switch
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- N.O. contact
- Switching function
- Threshold value comparator
- Valve function
- Closed
- Reverse polarity protection
- for all electrical connections
- Display type
- LED
- Setting range hysteresis
- -60 kPa...-10 kPa | -0.6 bar...-0.1 bar
- Hysteresis setting range
- -8.7 psi...-1.45 psi
- Setting options
- Potentiometer
- Switching status indication
- Optical
- Setting range threshold value
- -90 kPa...-20 kPa | -0.9 bar...-0.2 bar
- Threshold value setting range
- -13.05 psi...-2.9 psi
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Max. vacuum
- 85 %
- Nominal operating pressure
- 0.6 MPa
