Festo
171157

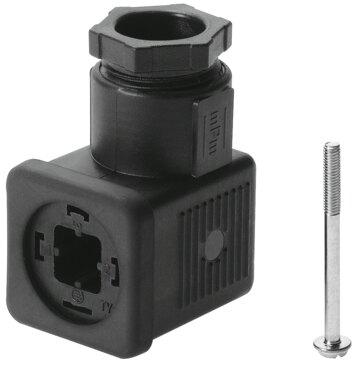

Plug socket MSSD-C-4P
The Festo part number 171157 is an industrial component featuring an M3 central screw for mounting on air solenoid valves in any position, weighing 22 g with a black polymer housing. It provides an IP65 degree of protection, an ambient temperature range of -25 °C to 90 °C, RoHS compliance, and VDMA24364-B2-L LABS conformity. Electrical connection is established via a 3-pin angled socket (Type A, rectangular design MSC and MSN1) conforming to DIN EN 175301-803, utilizing a Pg9 cable fitting for 6 mm to 8 mm cable diameters and a nominal conductor cross section of 1.5 mm². Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 171157
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 171157.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- On air solenoid valve with M3 central screw
- Mounting position
- Any
- Product weight
- 22 g
- Electrical connection
- 3-pin | Angled socket | Type A | As per DIN EN 175301-803 | Rectangular design MSC | Rectangular design MSN1
- Cable tting
- Pg9
- Cable diameter
- 6 mm...8 mm
- Nominal conductor cross section
- 1.5 mm²
- Degree of protection
- IP65
- Ambient temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Housing material
- Polymer
- Housing colour
- Black
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 171157. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
