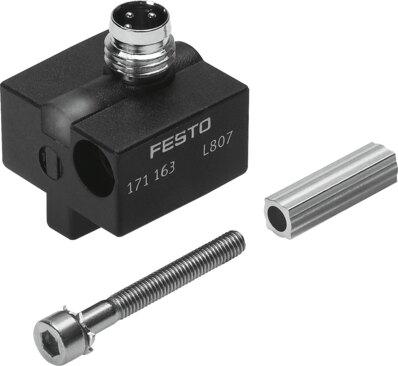

Reference imageConfirm configuration by manufacturer part number.
Festo
171166
Proximity sensor SMTO-8E-NS-S-LED-24
The Festo 171166 is an industrial component designed for T-slot mounting based on the EN 60947-5-2 norm, featuring a magneto-resistive measuring principle for position sensing with a 0.2 mm repetition accuracy. It provides an NPN switching output with a normally open contact function, operating at a maximum switching frequency of 130 Hz, a 100 mA maximum output current, and an ambient temperature range of -20 °C to 60 °C. The unit includes RCM compliance, CE and UKCA markings as per EU and UK EMC and RoHS directives, and RoHS-compliant materials. Submit the part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 171166
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 171166.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- For T-slot
- Based on norm
- EN 60947-5-2
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Application note
- Support / actuator-sensor overview "The right sensor for the actuator"
- Measured variable
- Position
- Measuring principle
- Magneto-resistive
- Ambient temperature
- -20 °C...60 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- NPN
- Switching element function
- N.O. contact
- On time
- 1.3 ms
- Switch-off time
- 7.3 ms
- Max. switching frequency
- 130 Hz
- Max. output current
- 100 mA
- Max. switching capacity DC
- 2.8 W
- Voltage drop
- 1.8 V
- Inductive protective circuit
- Adapted to MZ, MY and ME coils
- Residual current
- 0.15 mA
- Short-circuit protection
- Yes
- Overload protection
- Yes
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Snap-locking
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 171166. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
