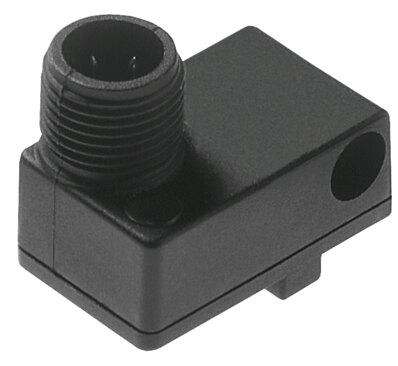

Reference imageConfirm configuration by manufacturer part number.
Festo
171176
Proximity sensor SMTO-8E-NS-M12-LED-24
The Festo 171176 is an industrial component designed for T-slots utilizing a magneto-resistive measuring principle for position sensing with a repetition accuracy of 0.2 mm. Operating within an ambient temperature range of -20 °C to 60 °C, this unit features an NPN switching output with an N.O. contact function, a max switching frequency of 130 Hz, and a max output current of 100 mA. It complies with EN 60947-5-2 norms, carries RCM, CE, and UKCA markings, and includes RoHS-compliant materials alongside an inductive protective circuit adapted to MZ, MY, and ME coils. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 171176
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 171176.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- For T-slot
- Based on norm
- EN 60947-5-2
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Application note
- Support / actuator-sensor overview "The right sensor for the actuator"
- Measured variable
- Position
- Measuring principle
- Magneto-resistive
- Ambient temperature
- -20 °C...60 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- NPN
- Switching element function
- N.O. contact
- On time
- 1.3 ms
- Switch-off time
- 7.3 ms
- Max. switching frequency
- 130 Hz
- Max. output current
- 100 mA
- Max. switching capacity DC
- 2.8 W
- Voltage drop
- 1.8 V
- Inductive protective circuit
- Adapted to MZ, MY and ME coils
- Residual current
- 0.15 mA
- Short-circuit protection
- Yes
- Overload protection
- Yes
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Screw-type lock
