Festo
1725842

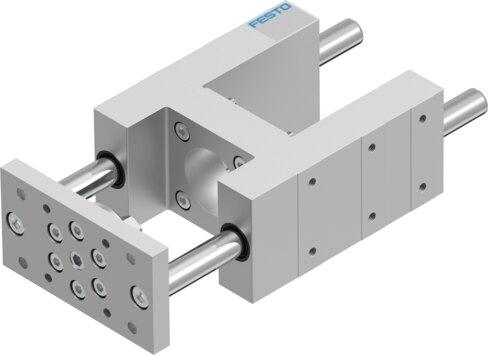

Guide unit EAGF-V2-KF-63-100
The Festo 1725842 is an industrial guide unit featuring a size 63 designation and a 100 mm stroke with a recirculating ball bearing guide and 0 µm reversing backlash. Designed for universal integration, it operates in any mounting position within an ambient temperature range of -20 °C to 80 °C and exhibits a displacement force of 15 N. This structural design handles maximum dynamic forces of 1260 N for Fy and Fz, static forces of 1600 N for Fy and Fz, dynamic moments of 75 Nm (Mx) and 90 Nm (My and Mz), and static moments of 95 Nm (Mx) and 115 Nm (My and Mz) with a CRC of 0 and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1725842
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1725842.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Stroke
- 100 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. torque Mx
- 75 Nm
- Max. static moment Mx
- 95 Nm
- Max. torque My
- 90 Nm
- Max. static moment My
- 115 Nm
- Max. torque Mz
- 90 Nm
- Max. static moment Mz
- 115 Nm
- Displacement force
- 15 N
- Moving mass
- 3045 g
- Product weight
- 6015 g
- Center of gravity of moving mass with 0 mm stroke
- 48 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.1 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
- Material of yoke plate
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1725842. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
