Festo
1725844

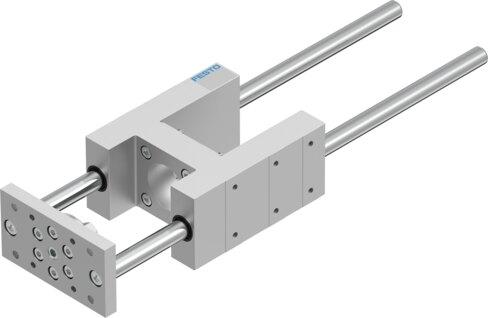

Guide unit EAGF-V2-KF-63-320
The Festo 1725844 is an industrial guide featuring a size 63 designation, a 320 mm stroke, and a recirculating ball bearing guide with zero reversing backlash. It operates within an ambient temperature range of -20 °C to 80 °C, supports a displacement force of 15 N, and accommodates any mounting position with a CRC of 0 and VDMA24364-B2-L LABS conformity. This structural design handles maximum dynamic forces of 1260 N for both Fy and Fz, static forces of 1600 N for Fy and Fz, maximum dynamic torques of 75 Nm (Mx) and 90 Nm (My and Mz), and maximum static moments of 95 Nm (Mx) and 115 Nm (My and Mz). Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1725844
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1725844.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Stroke
- 320 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. torque Mx
- 75 Nm
- Max. static moment Mx
- 95 Nm
- Max. torque My
- 90 Nm
- Max. static moment My
- 115 Nm
- Max. torque Mz
- 90 Nm
- Max. static moment Mz
- 115 Nm
- Displacement force
- 15 N
- Moving mass
- 4131 g
- Product weight
- 7093 g
- Center of gravity of moving mass with 0 mm stroke
- 48 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.1 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
- Material of yoke plate
- Steel
