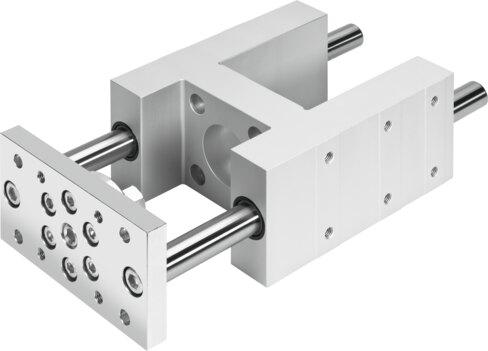

Reference imageConfirm configuration by manufacturer part number.
Festo
1725847
Guide unit EAGF-V2-KF-80-200
The Festo part number 1725847 is an industrial component guide featuring a size 80 and a 200 mm stroke with zero reversing backlash. This unit utilizes a recirculating ball bearing guide supporting any mounting position, an ambient temperature range of -20 °C to 80 °C, a corrosion resistance class of CRC 0, and VDMA24364-B2-L LABS conformity. It accommodates a displacement force of 40 N, a maximum dynamic force Fy and Fz of 2300 N, a maximum static force Fy and Fz of 3120 N, maximum dynamic moments Mx, My, and Mz of 170 Nm and 191 Nm, and maximum static moments Mx, My, and Mz of 231 Nm and 259 Nm. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1725847
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1725847.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Stroke
- 200 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 2300 N
- Max. force Fy static
- 3120 N
- Max. force Fz
- 2300 N
- Max. force Fz static
- 3120 N
- Max. torque Mx
- 170 Nm
- Max. static moment Mx
- 231 Nm
- Max. torque My
- 191 Nm
- Max. static moment My
- 259 Nm
- Max. torque Mz
- 191 Nm
- Max. static moment Mz
- 259 Nm
- Displacement force
- 40 N
- Moving mass
- 6682 g
- Product weight
- 12037 g
- Center of gravity of moving mass with 0 mm stroke
- 54 mm
- Center of gravity of moving mass with 10 mm stroke
- 3.8 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
- Material of yoke plate
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1725847. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
