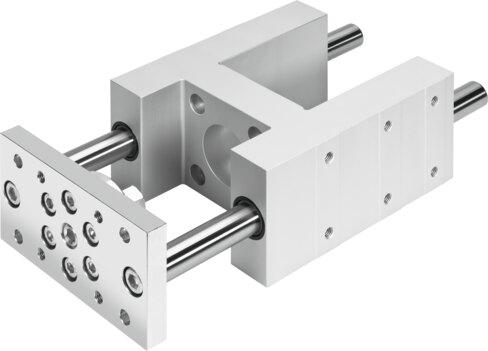

Reference imageConfirm configuration by manufacturer part number.
Festo
1725849
Guide unit EAGF-V2-KF-80-400
The Festo part number 1725849 is an industrial guide featuring a size 80 specification and a 400 mm stroke with a recirculating ball bearing guide and 0 µm reversing backlash. This structural design operates in any mounting position within an ambient temperature range of -20 °C to 80 °C, exhibiting a displacement force of 40 N alongside a corrosion resistance class of 0 and VDMA24364-B2-L LABS conformity. It accommodates a maximum dynamic force Fy and Fz of 2300 N, static force Fy and Fz of 3120 N, dynamic torque Mx of 170 Nm, static moment Mx of 231 Nm, and dynamic torque My and Mz of 191 Nm with a static moment My and Mz of 259 Nm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1725849
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1725849.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Stroke
- 400 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 2300 N
- Max. force Fy static
- 3120 N
- Max. force Fz
- 2300 N
- Max. force Fz static
- 3120 N
- Max. torque Mx
- 170 Nm
- Max. static moment Mx
- 231 Nm
- Max. torque My
- 191 Nm
- Max. static moment My
- 259 Nm
- Max. torque Mz
- 191 Nm
- Max. static moment Mz
- 259 Nm
- Displacement force
- 40 N
- Moving mass
- 8222 g
- Product weight
- 13557 g
- Center of gravity of moving mass with 0 mm stroke
- 54 mm
- Center of gravity of moving mass with 10 mm stroke
- 3.8 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
- Material of yoke plate
- Steel
