Festo
1725850

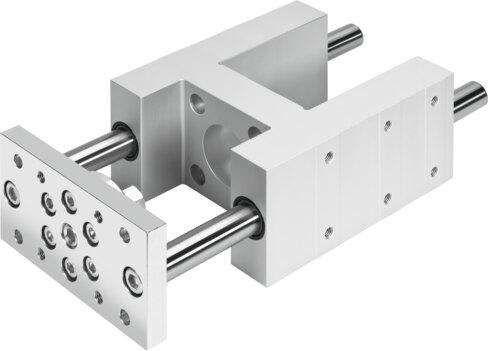

Guide unit EAGF-V2-KF-100-100
The Festo 1725850 is an industrial guide component featuring a size 100 design, a 100 mm stroke, and a recirculating ball bearing guide with 0 µm reversing backlash. Engineered for versatile installation, it operates within an ambient temperature range of -20 °C to 80 °C in any mounting position while withstanding a displacement force of 40 N, a maximum static moment Mx of 268 Nm, and maximum dynamic forces Fy and Fz of 2300 N. This unit exhibits a corrosion resistance class of 0 with no corrosion stress and adheres to VDMA24364-B2-L LABS conformity standards. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1725850
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1725850.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Stroke
- 100 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 2300 N
- Max. force Fy static
- 3120 N
- Max. force Fz
- 2300 N
- Max. force Fz static
- 3120 N
- Max. torque Mx
- 198 Nm
- Max. static moment Mx
- 268 Nm
- Max. torque My
- 197 Nm
- Max. static moment My
- 267 Nm
- Max. torque Mz
- 197 Nm
- Max. static moment Mz
- 267 Nm
- Displacement force
- 40 N
- Moving mass
- 6892 g
- Product weight
- 14023 g
- Center of gravity of moving mass with 0 mm stroke
- 47 mm
- Center of gravity of moving mass with 10 mm stroke
- 3.6 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
- Material of yoke plate
- Steel
