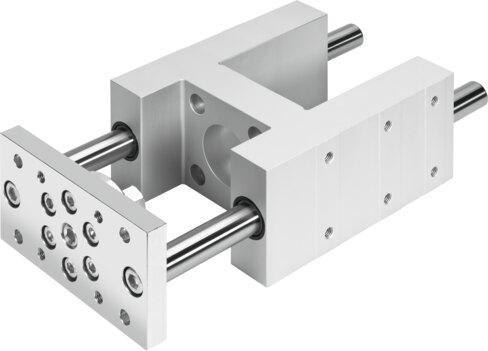

Reference imageConfirm configuration by manufacturer part number.
Festo
1725851
Guide unit EAGF-V2-KF-100-200
The Festo 1725851 is an industrial guide featuring a size 100 designation, a 200 mm stroke, and a recirculating ball bearing guide with 0 µm reversing backlash. Engineered with any mounting position and a 40 N displacement force, this structural guide design withstands an ambient temperature range of -20 °C to 80 °C, a corrosion resistance class of CRC 0, and VDMA24364-B2-L LABS conformity. It supports a maximum dynamic force Fy and Fz of 2300 N, a maximum static force Fy and Fz of 3120 N, maximum dynamic moments Mx, My, and Mz of 198 Nm, 197 Nm, and 197 Nm, and maximum static moments Mx, My, and Mz of 268 Nm, 267 Nm, and 267 Nm respectively. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1725851
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1725851.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Stroke
- 200 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 2300 N
- Max. force Fy static
- 3120 N
- Max. force Fz
- 2300 N
- Max. force Fz static
- 3120 N
- Max. torque Mx
- 198 Nm
- Max. static moment Mx
- 268 Nm
- Max. torque My
- 197 Nm
- Max. static moment My
- 267 Nm
- Max. torque Mz
- 197 Nm
- Max. static moment Mz
- 267 Nm
- Displacement force
- 40 N
- Moving mass
- 7662 g
- Product weight
- 14783 g
- Center of gravity of moving mass with 0 mm stroke
- 47 mm
- Center of gravity of moving mass with 10 mm stroke
- 3.6 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
- Material of yoke plate
- Steel
