Festo
1725852

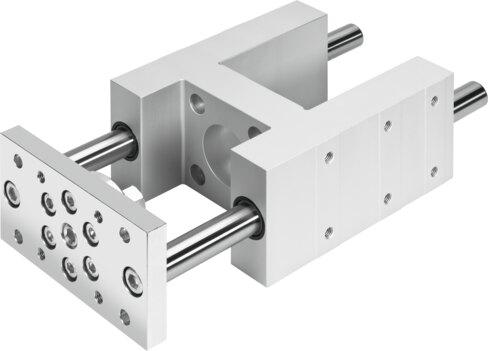

Guide unit EAGF-V2-KF-100-320
The Festo 1725852 is a size 100 structural guide featuring a recirculating ball bearing guide and a 320 mm stroke with zero reversing backlash. This component operates in ambient temperatures from -20 °C to 80 °C, supports any mounting position, and exhibits a displacement force of 40 N alongside a corrosion resistance class of 0 with VDMA24364-B2-L LABS conformity. It accommodates maximum dynamic forces of 2300 N for Fy and Fz, static forces of 3120 N for Fy and Fz, dynamic torques of 198 Nm for Mx and 197 Nm for My and Mz, and static moments of 268 Nm for Mx and 267 Nm for My and Mz. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1725852
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1725852.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Stroke
- 320 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 2300 N
- Max. force Fy static
- 3120 N
- Max. force Fz
- 2300 N
- Max. force Fz static
- 3120 N
- Max. torque Mx
- 198 Nm
- Max. static moment Mx
- 268 Nm
- Max. torque My
- 197 Nm
- Max. static moment My
- 267 Nm
- Max. torque Mz
- 197 Nm
- Max. static moment Mz
- 267 Nm
- Displacement force
- 40 N
- Moving mass
- 8586 g
- Product weight
- 15695 g
- Center of gravity of moving mass with 0 mm stroke
- 47 mm
- Center of gravity of moving mass with 10 mm stroke
- 3.6 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
- Material of yoke plate
- Steel
