Reference imageConfirm configuration by manufacturer part number.
Festo
172973
Cartridge QSP10-6

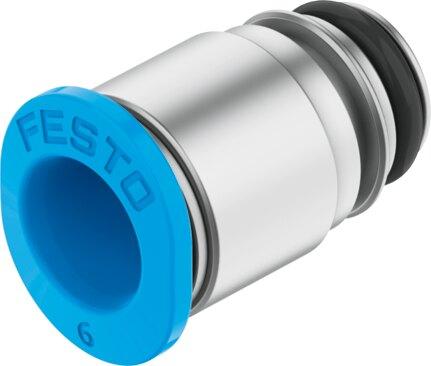

The Festo 172973 is a straight industrial component featuring a nickel-plated brass housing with a push-pull structural design and a blue releasing ring. This part accommodates a 10 mm cartridge on pneumatic connection 1 and a 6 mm pneumatic tubing outside diameter on connection 2, providing a 12 mm tubing insertion depth with an O-ring seal on the screwed plug. It operates within a pressure range of -0.095 MPa to 1 MPa using compressed air per ISO 8573-1:2010 [7:-:-] across an ambient temperature range of 0 °C to 60 °C. Supplied in a pack size of 10 with a product weight of 3.25 g each, this RoHS-compliant component supports lubricated operation and features a mounting pin for installation in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 172973
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 172973.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Tubing insertion depth
- 12 mm
- Type of seal on screwed plug
- O-ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 3.25 g
- Type of mounting
- Mounting pin
- Pneumatic connection 1
- Cartridge 10 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 172973. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
