Festo
172996

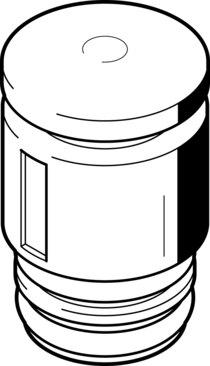

Blanking plug QSP17-PTB
The Festo 172996 is a standard straight industrial component featuring a 17 mm cartridge pneumatic connection 1 and a mounting pin for any mounting position. Constructed with a PA housing and an NBR tubing seal, this 4.7 g part operates within a pressure range of 0.95 bar to 10 bar and an ambient temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-]. It complies with RoHS standards, conforms to VDMA24364-B1/B2-L LABS (PWIS), and allows lubricated operation alongside maritime classification detailed in the certificate. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 172996
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 172996.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Operating pressure for entire temperature range
- 0.095 MPa...1 MPa | 0.95 bar...10 bar | 13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 4.7 g
- Type of mounting
- Mounting pin
- Pneumatic connection 1
- Cartridge 17 mm
- Note on materials
- RoHS compliant
- Housing material
- PA
- Material of tubing seal
- NBR
