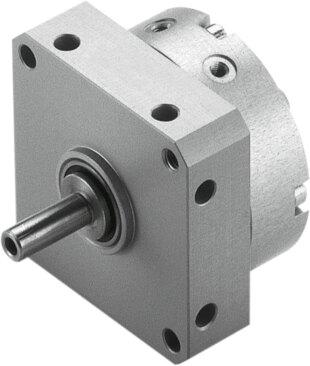

Reference imageConfirm configuration by manufacturer part number.
Festo
173190
Rotary actuator DSM-8-90-P
The Festo part number 173190 is a double-acting rotary vane industrial component featuring a size 8 specification, a swivel angle from 0 to 90 degrees, and a cushioning angle of 0.5 degrees. It operates within a pressure range of 0.35 MPa to 0.8 MPa utilizing compressed air according to ISO 8573-1:2010 [7:4:4], with oil lubrication possible and required for continued use. Equipped with elastic cushioning rings at both ends, this unit achieves a maximum swivel frequency of 3 Hz at 6 bar, a repetition accuracy of 1 degree, a maximum stop force of 30 N, and a maximum axial force of 10 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173190
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173190.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 8
- Cushioning angle
- 0.5 deg
- Swivel angle
- 0 deg...90 deg
- Permissible stop radius
- 10 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.35 MPa...0.8 MPa | 3.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Max. stop force
- 30 N
- Max. axial force
- 10 N
- Max. radial force
- 20 N
- Theoretical torque at 6 bar
- 0.35 Nm
- Permissible mass moment of inertia
- 0.0013 kgm²
- Product weight
- 78 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Drive shaft material
- high-alloy stainless steel
- Seals material
- TPE-U(PU)
- Housing material
- Aluminum
