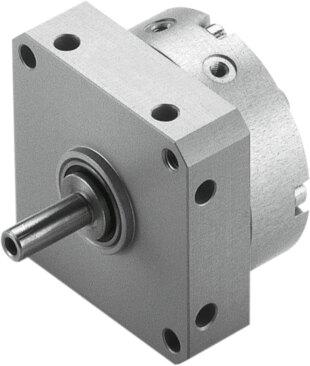

Reference imageConfirm configuration by manufacturer part number.
Festo
173193
Rotary actuator DSM-10-180-P
The Festo 173193 is a double-acting rotary vane industrial component featuring a size 10 design with an adjustable swivel angle from 0 to 180 degrees and elastic cushioning rings or pads at both ends. Operating within a pressure range of 0.25 MPa to 0.8 MPa utilizing compressed air, this unit achieves a maximum swivel frequency of 3 Hz at 6 bar with a repetition accuracy of 1 degree. It provides cleanroom suitability conforming to ISO 14644-1 Class 6, a corrosion resistance class of 0, and an ambient temperature range of 0 °C to 60 °C while supporting a maximum stop force of 60 N and a maximum axial force of 10 N in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173193
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173193.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 10
- Cushioning angle
- 0.5 deg
- Swivel angle
- 0 deg...180 deg
- Permissible stop radius
- 13 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Max. stop force
- 60 N
- Max. axial force
- 10 N
- Max. radial force
- 30 N
- Theoretical torque at 6 bar
- 0.85 Nm
- Permissible mass moment of inertia
- 0.0026 kgm²
- Product weight
- 140 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Drive shaft material
- high-alloy stainless steel
- Seals material
- TPE-U(PU)
- Housing material
- Aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 173193. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
