Festo
173779

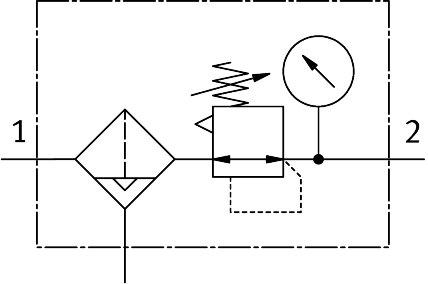

Filter regulator LFR-3/8-D-7-MINI-A-NPT
The Festo part number 173779 is a mini industrial component from the D series featuring a vertical mounting position and a 40 µm filtration grade. This unit operates within a pressure range of 0.2 MPa to 1.2 MPa, handles a normal nominal flow rate of 1700 l/min, and incorporates a fully automatic condensate drain with a maximum condensate volume of 22 cm³ inside a metal bowl guard. Designed for compressed air per ISO 8573-1:2010 [7:9:-] or inert gases, the component supports oil-lubricated operation, possesses a CRC 2 moderate corrosion resistance class, and weighs 460 g with inline or retaining bracket mounting options. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173779
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173779.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Series
- D
- Mounting position
- Vertical
- Grade of ltration
- 40 µm
- Condensate drain
- Fully automatic
- Max. condensate volume
- 22 cm³
- Bowl guard
- Metal bowl guard
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Max. pressure hysteresis
- 0.2 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 1700 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:9:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:4] | Inert gases
- Temperature of medium
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 460 g
- Type of mounting
- Alternatively: | In-line installation | With retaining bracket
- Pneumatic connection 1
- 3/8 NPT
- Pneumatic connection 2
- 3/8 NPT
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc
- Material of bowl
- PC
