Festo
173830

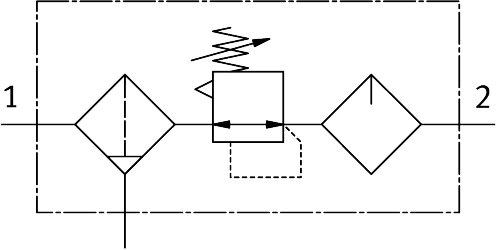

Service unit FRC-1/8-D-O-MINI-NPT
The Festo part number 173830 is a mini industrial component featuring a manual, non-detenting condensate drain and a 40 µm filtration grade housed in die-cast zinc with a polycarbonate bowl. It operates within a pressure range of 0.1 MPa to 1.6 MPa (1 bar to 16 bar) and regulates pressure from 0.5 bar to 12 bar, delivering a normal nominal flow rate of 700 l/min through 1/8 NPT pneumatic connections. Weighing 600 g with a moderate corrosion resistance class (CRC 2), this component operates with compressed air or inert gases at temperatures between -10 °C and 60 °C and allows for oil lubrication. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173830
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173830.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Condensate drain
- Manual, non-detenting
- Grade of ltration
- 40 µm
- Operating pressure
- 0.1 MPa...1.6 MPa | 1 bar...16 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 700 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:9:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 600 g
- Type of mounting
- With accessories
- Pneumatic connection 1
- 1/8 NPT
- Pneumatic connection 2
- 1/8 NPT
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc
- Material of bowl
- PC
