Festo
173834

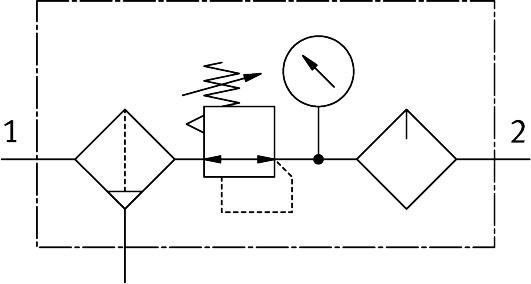

Service unit FRC-1/8-D-7-MINI-NPT
The Festo 173834 is a mini industrial component designed for vertical mounting with a standard nominal flow rate of 800 l/min and an operating pressure range of 1 bar to 16 bar. This unit features a 40 µm filtration grade, a manual non-detenting condensate drain, a pressure regulation range of 0.5 bar to 7 bar, and 1/8 NPT pneumatic connections for both ports 1 and 2. Operating within a medium and ambient temperature range of -10 °C to 60 °C, it supports compressed air as per ISO 8573-1:2010 [-:9:-] or inert gas with optional oil lubrication. Submit part number 173834, quantity, and application requirements to receive an exact quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173834
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173834.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Mounting position
- Vertical
- Condensate drain
- Manual, non-detenting
- Grade of ltration
- 40 µm
- Operating pressure
- 0.1 MPa...1.6 MPa | 1 bar...16 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 0.02 MPa | 0.2 bar | 2.9 psi
- Standard nominal ow rate
- 800 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:9:-] | Inert gas
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:-] | Inert gas
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 660 g
- Type of mounting
- Optionally: | Line installation | With mounting bracket
- Pneumatic connection 1
- 1/8 NPT
- Pneumatic connection 2
- 1/8 NPT
- Note on materials
- RoHS-compliant
- Housing material
- Die-cast zinc
- Material of bowl
- PC
