Festo
173837

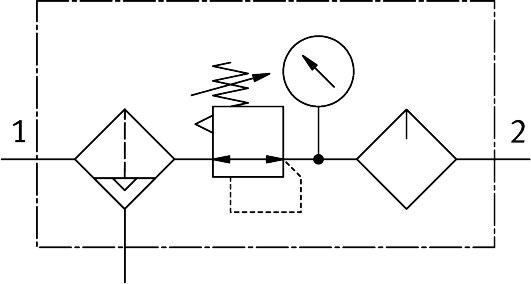

Service unit FRC-1/4-D-MINI-A-NPT
The Festo 173837 is a mini industrial component featuring a die-cast zinc housing, a polycarbonate bowl, and 1/4 NPT pneumatic connections on both ends. This unit operates within a pressure range of 0.2 MPa to 1.2 MPa and a temperature range of -10 °C to 60 °C, delivering a normal nominal flow rate of 1000 l/min with a 40 µm filtration grade and fully automatic condensate drain. It provides an air quality class output of ISO 8573-1:2010 [7:8:-] for compressed air and inert gases, incorporates a corrosion resistance class of 2, and weighs 660 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173837
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173837.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Condensate drain
- Fully automatic
- Grade of ltration
- 40 µm
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:9:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 660 g
- Type of mounting
- With accessories
- Pneumatic connection 1
- 1/4 NPT
- Pneumatic connection 2
- 1/4 NPT
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc
- Material of bowl
- PC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 173837. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
