Festo
173872

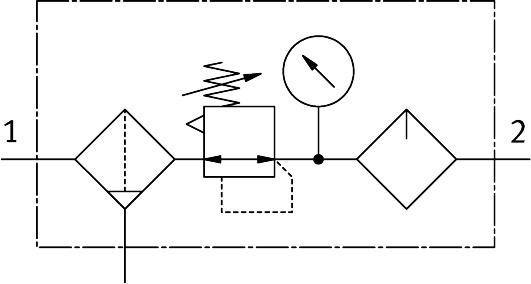

Service unit FRC-3/4-D-5M-MIDI-NPT
The Festo part number 173872 is a Midi-size industrial component featuring a die-cast zinc housing with 3/4 NPT pneumatic connections for both inlet and outlet ports. It operates within a pressure range of 1 bar to 16 bar and provides a pressure regulation range of 0.5 bar to 12 bar at a standard nominal flow rate of 2100 l/min. Designed for vertical mounting with an integrated manual, non-detenting condensate drain and 5 µm filtration grade, this unit handles compressed air per ISO 8573-1:2010 [-:9:-] or inert gas within a temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173872
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173872.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Midi
- Mounting position
- Vertical
- Condensate drain
- Manual, non-detenting
- Grade of ltration
- 5 µm
- Operating pressure
- 0.1 MPa...1.6 MPa | 1 bar...16 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Max. pressure hysteresis
- 0.02 MPa | 0.2 bar | 2.9 psi
- Standard nominal ow rate
- 2100 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:9:-] | Inert gas
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [6:8:-] | Inert gas
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1440 g
- Type of mounting
- Optionally: | Line installation | With mounting bracket
- Pneumatic connection 1
- 3/4 NPT
- Pneumatic connection 2
- 3/4 NPT
- Note on materials
- RoHS-compliant
- Housing material
- Die-cast zinc
- Material of bowl
- PC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 173872. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
