Festo
173879

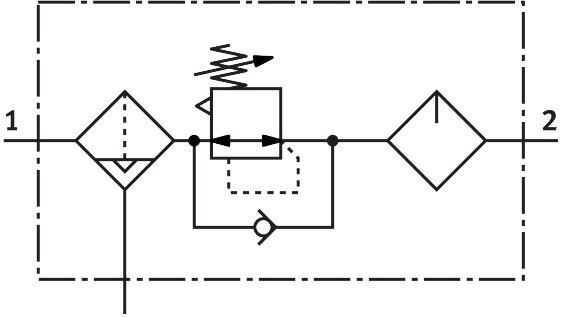

Service unit FRC-3/4-D-O-MAXI-A-NPT
The Festo part number 173879 is a Maxi-sized industrial component featuring a die-cast zinc housing, 3/4 NPT pneumatic connections, and a vertical mounting position with options for in-line installation or a retaining bracket. It operates within a pressure range of 0.2 MPa to 1.2 MPa and a regulation range of 0.5 bar to 12 bar, delivering a normal nominal flow rate of 8300 l/min for compressed air or inert gases at temperatures from -10 °C to 60 °C. This unit incorporates a fully automatic condensate drain, a 40 µm filtration grade, a maximum pressure hysteresis of 0.4 bar, and a CRC rating of 2 while weighing 2280 g. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173879
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173879.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Maxi
- Mounting position
- Vertical
- Condensate drain
- Fully automatic
- Grade of ltration
- 40 µm
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Max. pressure hysteresis
- 0.04 MPa | 0.4 bar | 5.8 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 8300 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:9:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:-]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2280 g
- Type of mounting
- Alternatively: | In-line installation | With retaining bracket
- Pneumatic connection 1
- 3/4 NPT
- Pneumatic connection 2
- 3/4 NPT
- Housing material
- Die-cast zinc
- Material of bowl
- PC
