Festo
173882

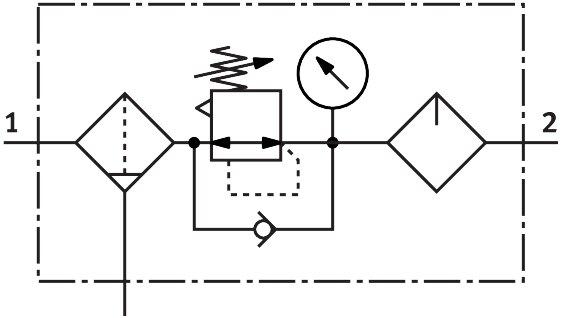

Service unit FRC-3/4-D-7-MAXI-NPT
The Festo part number 173882 is a Maxi-size industrial component featuring a die-cast zinc housing, a PC bowl, and 3/4 NPT pneumatic connections on both ports for vertical mounting via in-line installation or a retaining bracket. It operates within a pressure range of 0.1 MPa to 1.6 MPa (1 bar to 16 bar), a regulation range of 0.5 bar to 7 bar, and a maximum pressure hysteresis of 0.04 MPa (0.4 bar, 5.8 psi), delivering a normal nominal flow rate of 8500 l/min for compressed air as per ISO 8573-1:2010 [-:-:-] at temperatures from -10 °C to 60 °C. Additional specifications include a 40 µm filtration grade, a manual rotating condensate drain, a CRC rating of 2 for moderate corrosion stress, VDMA24364-B1/B2-L LABS conformity, and a product weight of 2390 g. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173882
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173882.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Maxi
- Mounting position
- Vertical
- Condensate drain
- Manual, rotating
- Grade of ltration
- 40 µm
- Operating pressure
- 0.1 MPa...1.6 MPa | 1 bar...16 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 0.04 MPa | 0.4 bar | 5.8 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 8500 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2390 g
- Type of mounting
- Alternatively: | In-line installation | With retaining bracket
- Pneumatic connection 1
- 3/4 NPT
- Pneumatic connection 2
- 3/4 NPT
- Housing material
- Die-cast zinc
- Material of bowl
- PC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 173882. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
