Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
173883

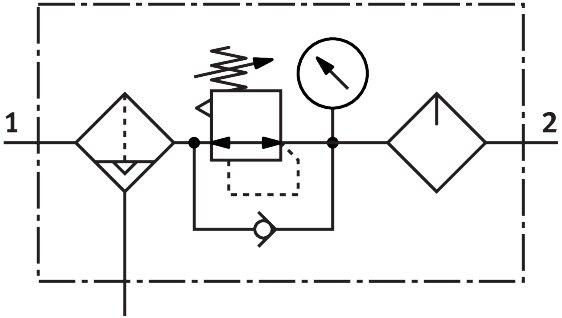

Service unit FRC-3/4-D-7-MAXI-A-NPT
The Festo part number 173883 is a Maxi-size industrial component featuring a vertical mounting position, a fully automatic condensate drain, and a 40 µm filtration grade. Constructed with a die-cast zinc housing and a PC bowl, it operates within a pressure range of 0.2 MPa to 1.2 MPa and provides a normal nominal flow rate of 8500 l/min through 3/4 NPT pneumatic connections. This unit accommodates a pressure regulation range of 0.5 bar to 7 bar, a maximum pressure hysteresis of 0.04 MPa, and a medium and ambient temperature range of -10 °C to 60 °C with a product weight of 2390 g. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173883
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173883.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Maxi
- Mounting position
- Vertical
- Condensate drain
- Fully automatic
- Grade of ltration
- 40 µm
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 0.04 MPa | 0.4 bar | 5.8 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 8500 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2390 g
- Type of mounting
- Alternatively: | In-line installation | With retaining bracket
- Pneumatic connection 1
- 3/4 NPT
- Pneumatic connection 2
- 3/4 NPT
- Housing material
- Die-cast zinc
- Material of bowl
- PC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 173883. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
