Festo
173891

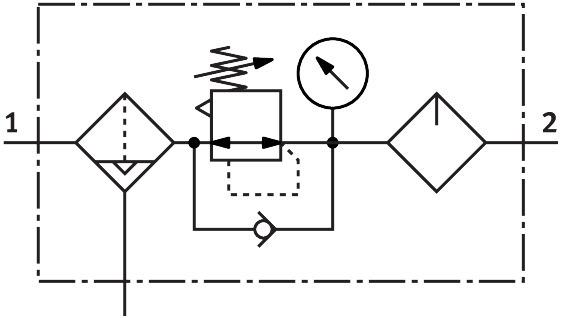

Service unit FRC-1-D-7-MAXI-A-NPT
The Festo part number 173891 is a Maxi-size industrial component featuring a vertical mounting position, a fully automatic condensate drain, and a 40 µm filtration grade. It operates within a pressure range of 2 bar to 12 bar and a regulation range of 0.5 bar to 7 bar, delivering a standard nominal flow rate of 8700 l/min through 1 NPT pneumatic connections. Constructed with a die-cast zinc housing and a PC bowl, the unit weighs 2520 g and functions with compressed air as per ISO 8573-1:2010 [-:-:-] at temperatures between -10 °C and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173891
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173891.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Maxi
- Mounting position
- Vertical
- Condensate drain
- Fully automatic
- Grade of ltration
- 40 µm
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 0.04 MPa | 0.4 bar | 5.8 psi
- Standard nominal ow rate
- 8700 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2520 g
- Type of mounting
- Optionally: | Line installation | With mounting bracket
- Pneumatic connection 1
- 1 NPT
- Pneumatic connection 2
- 1 NPT
- Housing material
- Die-cast zinc
- Material of bowl
- PC
