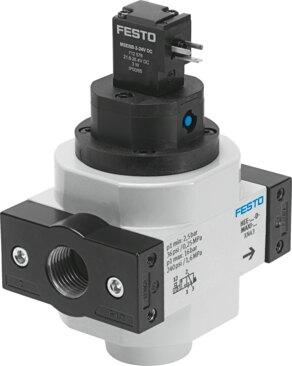

Reference imageConfirm configuration by manufacturer part number.
Festo
173914
On/off valve HEE-1-D-MAXI-24-NPT
The Festo 173914 is an electrically actuated piston gate valve featuring a 3/2-way, closed, monostable valve function with a soft sealing principle and positive overlap lap. Operating at pressures from 0.25 MPa to 1.6 MPa (2.5 bar to 16 bar), this piloted component delivers a normal nominal flow rate of 6500 l/min, a C value of 27.6 l/sbar, and a b-value of 0.32 using compressed air or inert gases with a 100% duty cycle. The unit includes a 24 V DC, 2.5 W coil with +/- 10% permissible voltage fluctuations, a detenting manual override, a mechanical spring reset method, and a moderate corrosion resistance class (CRC 2) rating. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173914
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173914.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 65 mm
- Structural design
- Piston gate valve
- Actuation type
- Electrical
- Sealing principle
- Soft
- Exhaust air function
- Cannot be throttled
- Manual override
- Detenting
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Valve function
- 3/2-way, closed, monostable
- Operating pressure
- 0.25 MPa...1.6 MPa | 2.5 bar...16 bar
- Lap
- Positive overlap
- C value
- 27.6 l/sbar
- b-value
- 0.32
- Normal nominal ow rate (normalized to DIN 1343)
- 6500 l/min
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 2.5 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Type of mounting
- In-line installation | With accessories
- Mounting position
- Any
- Flow direction
- Non-reversible
- Product weight
- 800 g
- Pneumatic connection 1
- 1 NPT
