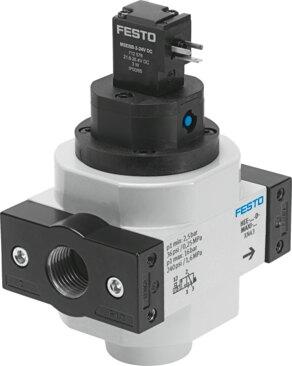

Reference imageConfirm configuration by manufacturer part number.
Festo
173915
On/off valve HEE-1-D-MAXI-110-NPT
Festo On/off valve HEE-1-D-MAXI-110-NPT, part number 173915, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 173915
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173915.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Width dimension
- 65 mm
- Structural design
- Piston gate valve
- Actuation type
- Electrical
- Sealing principle
- Soft
- Exhaust air function
- Cannot be throttled
- Manual override
- Detenting
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Valve function
- 3/2-way, closed, monostable
- Operating pressure
- 0.25 MPa...1.6 MPa | 2.5 bar...16 bar
- Lap
- Positive overlap
- C value
- 27.6 l/sbar
- b-value
- 0.32
- Normal nominal ow rate (normalized to DIN 1343)
- 6500 l/min
- Duty cycle
- 100%
- Coil characteristics
- 110 V AC: 50/60 Hz, initial power 5.0 VA, holding power 3.7 VA
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Type of mounting
- In-line installation | With accessories
- Mounting position
- Any
- Flow direction
- Non-reversible
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 173915. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
