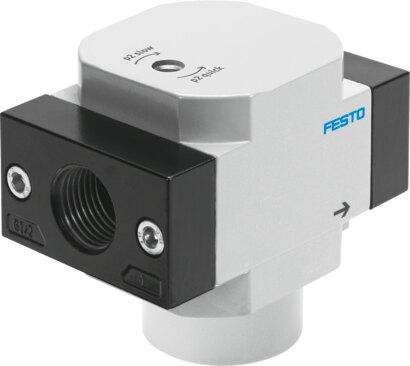

Reference imageConfirm configuration by manufacturer part number.
Festo
173921
On/off valve HEL-3/4-D-MIDI-NPT
Engineered by Festo with part number 173921, this direct-controlled pneumatic industrial component features a 55 mm width and a 2/2-way, closed, monostable piston gate valve structural design with a mechanical spring reset method and non-reversible flow direction. The unit operates within a pressure range of 0.3 MPa to 1.6 MPa (3 bar to 16 bar) utilizing compressed air per ISO 8573-1:2010 [7:4:4] or inert gases, delivering a normal nominal flow rate of 3800 l/min with an adjustable exhaust air function, soft sealing principle, and any mounting position. Featuring a C value of 20.5 l/sbar, a b-value of 0.48, and a moderate corrosion resistance class (CRC) of 2, it allows for oil lubrication operation which is required for further use. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173921
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173921.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 55 mm
- Exhaust air function
- Adjustable
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Type of control
- directly
- Flow direction
- Non-reversible
- Valve function
- 2/2-way, closed, monostable
- Operating pressure
- 0.3 MPa...1.6 MPa | 3 bar...16 bar
- b-value
- 0.48
- C value
- 20.5 l/sbar
- Normal nominal ow rate (normalized to DIN 1343)
- 3800 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 270 g
- Type of mounting
- In-line installation | With accessories
- Pneumatic connection 1
- 3/4 NPT
- Pneumatic connection 2
- 3/4 NPT
- Note on materials
- RoHS compliant
