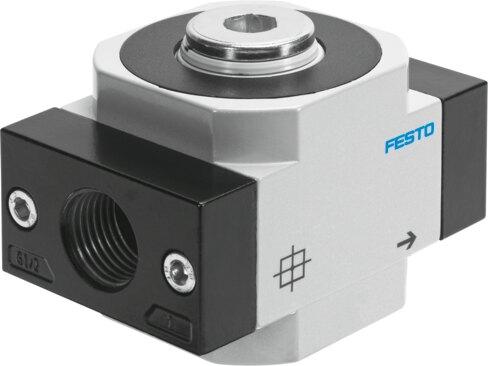

Name: Festo 173927 Branching module FRM-3/8-D-MIDI-NPT
Brand: Festo

Branching module FRM-3/8-D-MIDI-NPT

The Festo 173927 is a die-cast aluminum branching module featuring a robust structural design with any mounting position and a product weight of 522 g. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] or inert gases across an operating pressure range of 0 MPa to 1.6 MPa (0 bar to 16 bar) and handles a standard nominal flow rate of 6700 l/min in the main flow direction 1 to 2. This RoHS compliant component includes 3/8 NPT pneumatic connections 1 and 2, a G1/2 pneumatic connection 3, a G1/4 pneumatic connection 4, and offers a moderate corrosion resistance class (CRC) of 2 along with a storage, medium, and ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 173927
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 173927.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Structural design: Branching module
Operating pressure: 0 MPa...1.6 MPa | 0 bar...16 bar
Standard nominal ow rate in main ow direction 1 -> 2: 6700 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gases
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C...60 °C
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gases
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Product weight: 522 g
Pneumatic connection 1: 3/8 NPT
Pneumatic connection 2: 3/8 NPT
Pneumatic connection 3: G1/2
Pneumatic connection 4: G1/4
Note on materials: RoHS compliant
Housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 173927. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
