Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

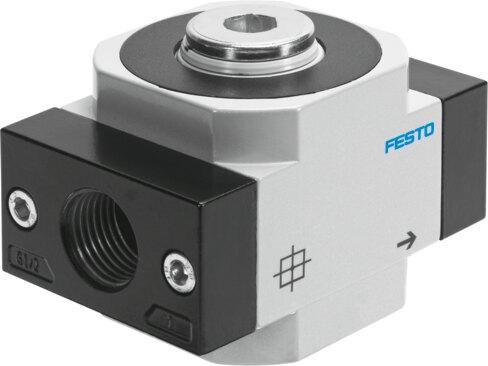

Reference imageConfirm configuration by manufacturer part number.
Festo
173931
Branching module FRM-1-D-MAXI-NPT
The Festo 173931 branching module features a die-cast zinc housing with an any mounting position and a product weight of 772 grams. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] or inert gases at pressures ranging from 0 MPa to 1.6 MPa (0 bar to 16 bar), providing a standard nominal flow rate of 17400 l/min in the main flow direction 1 to 2. This RoHS-compliant unit includes 1 NPT pneumatic connections 1 and 2, a G3/4 connection 3, and a G1/4 connection 4, while withstanding medium, ambient, and storage temperatures between -10 °C and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 173931
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 173931.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Structural design
- Branching module
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar
- Standard nominal ow rate in main ow direction 1 -> 2
- 17400 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 772 g
- Pneumatic connection 1
- 1 NPT
- Pneumatic connection 2
- 1 NPT
- Pneumatic connection 3
- G3/4
- Pneumatic connection 4
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 173931. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
