Festo
174309

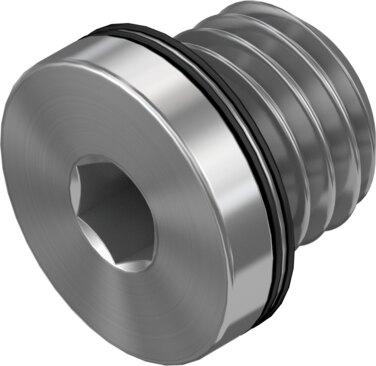

Blanking plug B-M7
The Festo part number 174309 is a galvanized steel blanking plug featuring an M7 external thread and an internal hexagon AF 3 mounting type. This component includes a high-grade steel and NBR O-ring, conforms to VDMA24364-B1/B2-L LABS (PWIS) requirements, and is RoHS compliant with a product weight of 2 g. It operates at a nominal tightening torque of 3.35 Nm with a tolerance of ±20% and is supplied in a pack size of 10. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 174309
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 174309.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 10
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Nominal tightening torque
- 3.35 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 2 g
- Type of mounting
- Internal hexagon, AF 3
- Pneumatic connection 1
- External thread M7
- Note on materials
- RoHS compliant
- Blanking plug material
- Galvanized steel
- O-ring material
- High-grade steel | NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 174309. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
