Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
174387

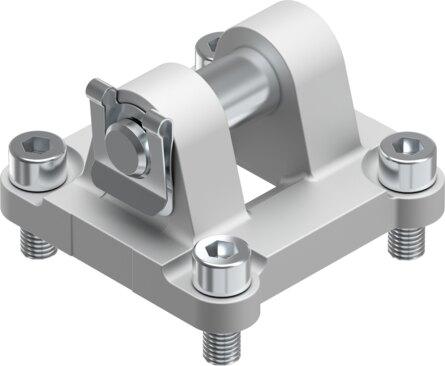

Clevis flange SNC-80
The Festo part number 174387 is an industrial component featuring a size 80 specification based on the ISO 15552 norm. Weighing 620 g with a maximum load capacity of 6 kN, this unit is constructed from die-cast aluminum mounting material, galvanized steel bolts and screws, and galvanized spring steel fuse material. It holds a corrosion resistance class of CRC 1 for low corrosion stress, VDMA24364-B2-L LABS conformity, RoHS compliance, and an operational ambient temperature range of -40 °C to 150 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 174387
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 174387.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 6 kN
- Product weight
- 620 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum
- Bolt material
- Steel | Galvanized
- Material of screws
- Steel | Galvanized
- Fuse material
- Spring steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 174387. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
