Festo
174392

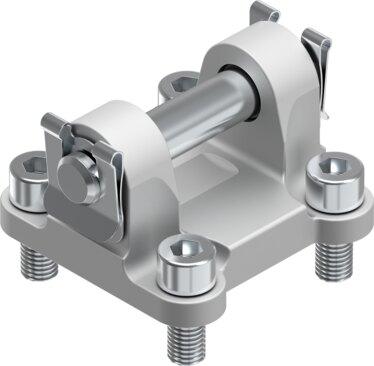

Clevis flange SNCB-50
The Festo part number 174392 is an industrial component in size 50 based on the ISO 15552 norm, featuring a low corrosion stress CRC of 1 and VDMA24364-B2-L LABS conformity. Constructed with die-cast aluminum mounting material, galvanized steel bolts, screws, disc, and fuse, alongside a polymer bearing, this 233 g assembly withstands an ambient temperature range of -40 °C to 90 °C and a maximum load capacity of 2.5 kN while complying with RoHS material standards and excluding metals with over 5% copper by mass to maintain suitability for Li-ion battery production facilities. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 174392
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 174392.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Based on norm
- ISO 15552
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper are excluded from use. | This excludes printed circuit boards, cables, electrical connectors and | coils.
- Ambient temperature
- -40 °C...90 °C
- Max. load capacity
- 2.5 kN
- Product weight
- 233 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum
- Bolt material
- Steel, galvanized
- Material of bearing
- Polymer
- Disc material
- Steel, galvanized
- Material of screws
- Galvanized steel
- Fuse material
- Spring steel, galvanized
