Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
174395

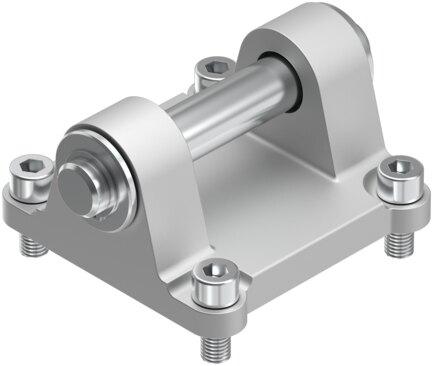

Clevis flange SNCB-100
The Festo part number 174395 is an industrial component of size 100 based on the ISO 15552 norm, featuring a product weight of 1039 g and a maximum load capacity of 9 kN. Constructed with die-cast aluminum mounting material, galvanized steel bolts, screws, disc and fuse, and polymer bearing material, this RoHS-compliant unit operates within an ambient temperature range of -40 °C to 90 °C. It has a corrosion resistance class of CRC 1 for low corrosion stress, VDMA24364-B2-L LABS conformity, and is suitable for the production of Li-ion batteries with the exclusion of metals containing more than 5% copper by mass in specific components. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 174395
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 174395.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Based on norm
- ISO 15552
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper are excluded from use. | This excludes printed circuit boards, cables, electrical connectors and | coils.
- Ambient temperature
- -40 °C...90 °C
- Max. load capacity
- 9 kN
- Product weight
- 1039 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum
- Bolt material
- Steel, galvanized
- Material of bearing
- Polymer
- Disc material
- Steel, galvanized
- Material of screws
- Galvanized steel
- Fuse material
- Spring steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 174395. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
