Festo
174397

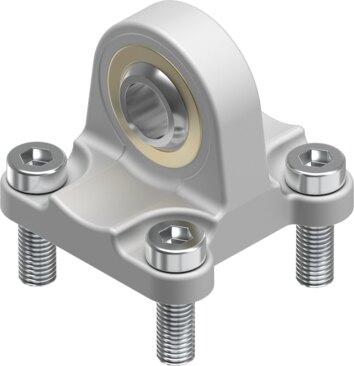

Clevis flange SNCS-32
The Festo 174397 is an industrial component featuring size 32 dimensions and ISO 15552 norm compliance. Constructed with die-cast aluminum mounting material, a steel and PTFE rod end bearing, and galvanized steel screws, this 86 g unit achieves a maximum load capacity of 1 kN. It operates within an ambient temperature range of -40 °C to 150 °C while offering CRC 1 low corrosion stress resistance and RoHS-compliant materials with VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 174397
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 174397.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 1 kN
- Product weight
- 86 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum
- Rod end bearing material
- Steel | PTFE
- Material of screws
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 174397. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
