Festo
174401

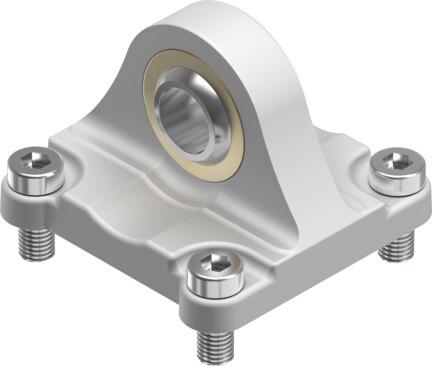

Clevis flange SNCS-80
The Festo part number 174401 is an industrial component featuring a size 80 specification based on the ISO 15552 norm, previously aligned with VDMA 24562, ISO 6431, NF E49 003.1, and UNI 10290 standards. Constructed with die-cast aluminum mounting material, galvanized steel screws, and a steel and PTFE rod end bearing, this RoHS-compliant unit operates within an ambient temperature range of -40 °C to 150 °C and supports a maximum load capacity of 6 kN. It exhibits a corrosion resistance class of CRC 2 for moderate corrosion stress, VDMA24364-B2-L LABS conformity, and a product weight of 556 g. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 174401
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 174401.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 6 kN
- Product weight
- 556 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum
- Rod end bearing material
- Steel | PTFE
- Material of screws
- Steel | Galvanized
