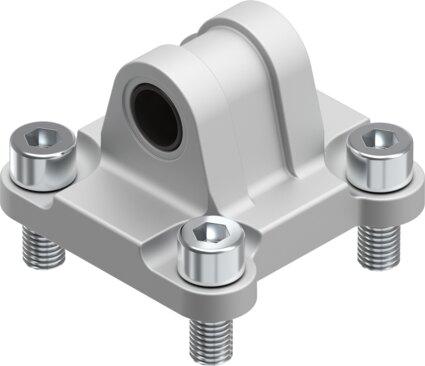

Reference imageConfirm configuration by manufacturer part number.
Festo
174406
Clevis flange SNCL-50
The Festo part number 174406 is an industrial component featuring a size 50 configuration based on the ISO 15552 norm, previously corresponding to VDMA 24562, ISO 6431, NF E49 003.1, and UNI 10290 standards. Weighing 158 g with a max load capacity of 2.5 kN, this unit incorporates die-cast aluminum mounting material, a polymer bearing, and galvanized steel screws while offering a corrosion resistance class of 1, VDMA24364-B2-L LABS conformity, RoHS compliance, and an ambient temperature range of -40 °C to 90 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 174406
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 174406.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...90 °C
- Max. load capacity
- 2.5 kN
- Product weight
- 158 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum
- Material of bearing
- Polymer
- Material of screws
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 174406. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
